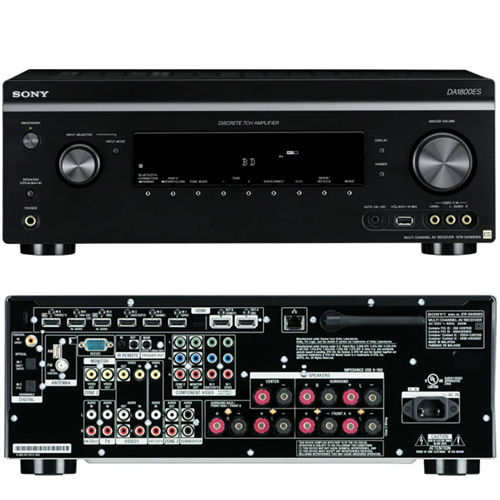

SONY STRDA1800ES AV NETWORK RECEIVER 7.2CH BLACK

HD sound.

Add vertical sound effects and breathtaking realism to your movie watching experience with HD Digital Cinema Sound™ (HD D.C.S) with Front High Speakers. Complimenting these new sound technologies, the STR-D1800ES is equipped with a powerful transformer for better overall sound while two large block electrolytic capacitors provide the main power supply. These devices are particularly critical for sound quality and provide an overall improvement to the entire frequency range.

Built-in Bluetooth.

Connect via Bluetooth and start streaming the latest hits, your all-time favorite songs or discover all-new music to listen to on your Android™ smartphone or tablet. Unlock more music options for your living room, regardless of the device they're on.

Amplifier/Receiver Amplifier Features
- 4 Ohm/8 Ohm Switching : 8 Ohm
- Analog Down Mix : 17 points (40-200Hz)
- Number of Amp channels : 7ch

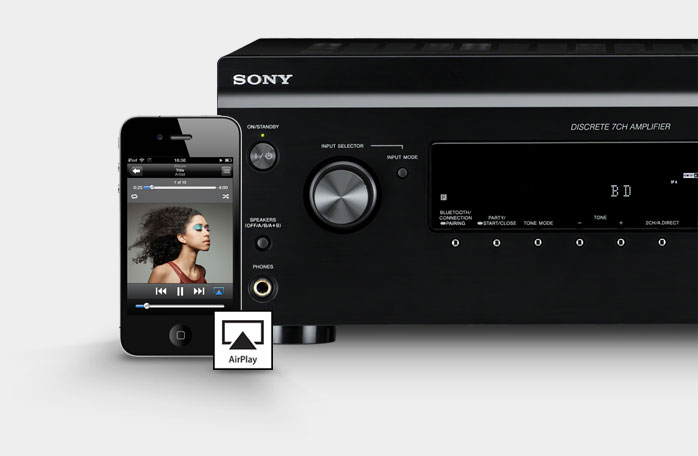

- AirPlay : Yes
- Bi-AMP : Yes
- Sound Optimizer : Yes
- Advanced Auto Volume : Yes
- DSP : Falcon2.0
- Digital Legato Linear : Yes
- Speaker Selector : [A/B, A+B]
Amplifier/Receiver Amplifier Power
- (8Ohms 20-20kHz) THD : 0.09%
- (8Ohms 20-20kHz) : 100W + 100W
Amplifier/Receiver CIS & Control Features
- 2nd A : Line(Fixed)
- IP Control : Yes
Amplifier/Receiver DCAC Features
- Mic : Mono
- Band : 6
- DCAC : Advanced D.C.A.C.
Amplifier/Receiver Network Features
- Network Renderer : Yes
- DLNA Party Streaming : Yes
- Mobile Application : Media Remote Base (iPhone/Android)

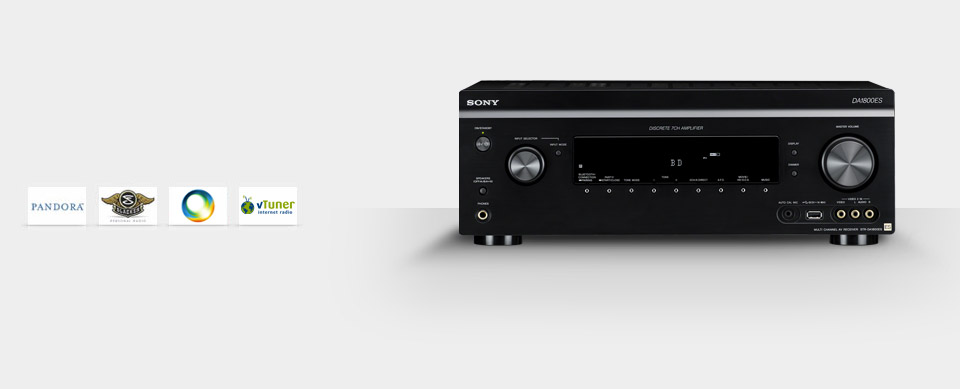

- Internet Music Service : vTuner/Slacker
- Direct Ethernet Update : Yes
- Sony Entertainment Network : Yes(up to Audio)
- Music Decoding Format for Network Client : WAV ( LPCM ), MP3, WMA, AAC
- Network Client : Yes (Music)

Audio Features

Audio Features Decoding Format
- Dolby Digital EX/ Dolby Digital : Yes (Dolby Digital EX and Dolby Digital)
- Dolby TruHD/Dolby Digital + : Yes (Dolby TruHD and Dolby Digital +)
- 96kHz/24bit : Yes
- DTS HD MA/ DTS HD HR : Yes/Yes
- Dolby Prologic/II /IIx /IIz : Yes (II, Iıx and Iız)
- DTS 96/24/ DTS Neo:6 : Yes/Yes
- Dolby Dual Mono : Yes
- DTS / DTS-ES (Matrix6.1 / Discrete6.1) : Yes/Yes
- LPCM (2CH/5.1CH/7.1CH) thru HDMI : Yes(Yes/Yes/Yes)
Audio Features Sound Field
- PLII Movie : Yes
- PLIIx Movie : Yes
- PLII Music : Yes
- Portable Audio Enhancer : Yes
- PLIIx Music : Yes
- PLIIz Height : Yes
- Stadium : Yes (SB/FH)
- Sports : Yes (SB/FH)
- Sound Field Link : Yes
- Live Concert : Yes (SB/FH)
- Multi Stereo : Yes (SB/FH)
- Neo:6 Music : Yes
- Neo:6 Cinema : Yes
- A.F.D. Auto : Yes
- Berlin Philharmonic Hall : Yes (SB/FH)
- HD-D.C.S. : Yes (SB/FH)
- Analog Direct : Yes
- Headphone 2ch : Yes
- Headphone Direct : Yes
- Jazz Club : Yes (SB/FH)
- 2ch : Yes
Audio Features Tuner
- Preset Channel (FM/AM) : TTL60 (30/30)
- Station Name : Yes
- Direct Tuning : Yes (RM)
- Auto Tuning : Yes

General

General Installation
- 2nd V : Composite & Component & HDMI (common use w/ main out)
- Certification (AMX/Crestron/Control 4) : Yes
- RS-232C for Control : Yes
- IR Repeat (In/Out) : Yes(1/1)
General Other
- Power Requirement : 120V 60Hz
- Update Capability : Yes
- Sleep Timer : Yes (up to 2 hours)
- Auto Standby : Yes
- Assignable Component Video In : Yes
- Digital Input Assign : Yes
- Detachable AC : Yes
- GUI Language : English
- GUI : Yes (Simple)
- Panel : Mold/HAT Entry
- iPod Browsing with System (via USB) : Yes (Video/Music)

Inputs and Outputs

Inputs and Outputs Audio Inputs
- Analog Audio In : 2
- Coaxial : 1
- Multi-ch In : Yes (FM and AM)
- Optical In : 2
Inputs and Outputs Audio Outputs
- Pre Out (Front (L/R)) : 19 11/16 X 9 7/8 X15 3/4
- Pre Out (Surround (L/R)) : 24lb 9oz
- Headphone Out : Yes
Inputs and Outputs Other Inputs and
- Bluetooth : Yes
- USB : 1(Front:iPhone/WM)
- Ethernet (Switching HUB) : 1
- Center : Yes
- Front (Bass/Treble) : Yes/Yes
- Front A (L/R) : Yes
- Surround (L/R) : Yes
- Front High (L/R) : Yes
Inputs and Outputs Speaker Outputs
- Center : Yes
- Front (Bass/Treble) : Yes/Yes
- Front A (L/R) : Yes
- Surround (L/R) : Yes
- Front High (L/R) : Yes
Inputs and Outputs Video Inputs
- Component Video In : 2
- AV In: Including Front AV : 3
- HDMI In : 6
Inputs and Outputs Video Outputs
- AV Out: Inc. Monitor Out : 1
- Composite Video Out: Inc. Monitor Out : 1
- HDMI Out : Output x2 (Assignable for Zone out x 1)

- 2nd V : Composite & Component & HDMI (common use w/ main out)
- Certification (AMX/Crestron/Control 4) : Yes
- RS-232C for Control : Yes
- IR Repeat (In/Out) : Yes(1/1)

Other

- Power Requirement : 120V 60Hz
- Update Capability : Yes
- Sleep Timer : Yes (up to 2 hours)
- Auto Standby : Yes
- Assignable Component Video In : Yes
- Digital Input Assign : Yes
- Detachable AC : Yes
- GUI Language : English
- GUI : Yes (Simple)
- Panel : Mold/HAT Entry
- iPod Browsing with System (via USB) : Yes (Video/Music)

Video Features

Video Features A/V Sync Features
- A/V Sync Sampling Frequency : 192kHz
- A/V Sync Time (msec) : 0-300
- HDMI Version : 1.4a
- HDMI™ video output capability : 4k, 1080/24p, Deep Color, x.v.Color (xvYCC)
- Video Up Converter (Analog Component/HDMI) : Yes (Analog component and HDMI)
- Video Up Scaler (Analog; Component/HDMI) : Yes(1080i and 4k)
- Power Off Pass Through : Yes
- 3D over HDMI : Yes
- BRAVIA® SYNC™ (CEC Control) : Yes (One-Touch Play, System Audio Control, System Power Off, Theater Mode(No button on RM))
- S-Select : Yes
- Audio Return Channel : Yes
- Audio Widget : Yes
- HDMI Version : 1.4a
- HDMI(tm) video output capability : 4k, 1080/24p, Deep Color, x.v.Color (xvYCC)
- Video Up Converter (Analog Component/HDMI) : Yes (Analog component and HDMI)
- Video Up Scaler (Analog; Component/HDMI) : Yes(1080i and 4k)
- Power Off Pass Through : Yes
- 3D over HDMI : Yes
- BRAVIA® SYNC™ (CEC Control) : Yes (One-Touch Play, System Audio Control, System Power Off, Theater Mode(No button on RM))
- S-Select : Yes
- Audio Return Channel : Yes
- Audio Widget : Yes

Receiver Weight (pound) : 20lb 1oz
Receiver Dimension (WxHxD inches) : 17 X 6 1/4 X 12 3/4 in
