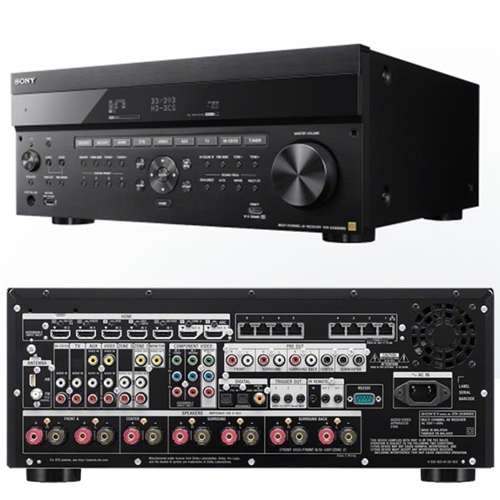

SONY ES 7.2ch 4K AV Receiver

• • Amplifier/Receiver Amplifier Features

    • Sub Woofer X' Over : 17 points (40-200Hz)
    • Number of Amp channels : 7 channels
    • Bi-AMP : Yes
    • Speaker Impedance : 6 - 16 Ohms
    • Sound Optimizer : Yes
    • Digital Legato Linear : Yes
    • Speaker Terminal : Screw (Ni)
    • Speaker Selector : A/B, A+B, Off

  • Amplifier/Receiver Amplifier Power

    • 8Ohms 1kHz : 110W, THD 0.9%

  • Amplifier/Receiver CIS & Control Features

    • 2nd A : Speaker & Line (Variable & Variable)

  • Amplifier/Receiver DCAC Features

    • Automatic Phase Matching : Yes
    • Mic : Mono
    • DCAC : Advanced D.C.A.C

  • Amplifier/Receiver Network Features

    • Network Update : Yes
    • CIS IP Control : Yes

• Audio Features

  • Audio Features Decoding Format

    • Dolby Digital EX/ Dolby Digital : Yes / Yes
    • 192kHz/24bit : LPCM, Yes
    • Dolby TruHD/Dolby Digital + : Yes / Yes
    • 96kHz/24bit : LPCM, Yes
    • DTS HD MA/ DTS HD HR : Yes / Yes
    • Dolby Prologic/II /IIx /IIz : Yes / Yes / Yes / No
    • DTS 96/24/ DTS Neo:6 : Yes / No
    • DTS / DTS-ES (Matrix6.1 / Discrete6.1) : Yes / Yes

  • Audio Features Sound Field

    • PLII Movie : Yes
    • PLIIx Movie : Yes
    • Multi Stereo : Yes
    • Neo:6 Cinema : Yes
    • A.F.D. Auto : Yes
    • HD-D.C.S. : Yes
    • Analog Direct : Yes
    • 2ch : Yes

  • Audio Features Tuner

    • Preset Channel (FM/AM) : 60 Total (30 FM, 30 AM)
    • Station Name : Yes
    • Direct Tuning : Yes
    • Auto Tuning : Yes

• General

  • General Installation

    • 2nd V : HDMI / Component / Composite
    • 12V Trigger : 3
    • Certification (AMX/Crestron/Control 4) : Yes / Yes / Yes
    • 3rd A : Line (Variable / Fixed)
    • RS-232C for Control : Yes
    • IR Repeat (In/Out) : Yes (1 in / 2 out)

  • General Other

    • Power Requirement : 120 V, 60 Hz
    • Power Consumption : 290 W
    • Pin Jack : Nickel
    • Update Capability : Yes, via USB
    • Sleep Timer : Yes (up to 2 hours)
    • Auto Standby : Yes
    • Assignable HDMI Video In : Yes
    • Easy Automation : Yes with Custom Preset
    • Assignable Component Video In : Yes
    • Digital Input Assign : Yes, Optical and Coaxial
    • Detachable AC : Yes
    • GUI Blending Output (from Composite/Component/HDMI)(2) : Yes
    • GUI Language : English, French, Spanish
    • GUI : Yes with Easy Setup Wizard

• Inputs and Outputs

  • Inputs and Outputs Audio Inputs

    • Analog Audio In : 4
    • Coaxial : 1
    • Optical In : 2

  • Inputs and Outputs Audio Outputs

    • Pre Out (Front (L/R)) : Yes
    • Pre Out (Center) : Yes
    • Pre Out (Subwoofer) : Yes
    • Pre Out (Surround Back (L/R)) : Yes
    • Pre Out (Surround (L/R)) : Yes

  • Inputs and Outputs Other Inputs and

    • USB : 1 (front, for setting Save / Load)
    • Ethernet (Switching HUB) : 8-port Giga Ethernet Hub (with PoE support (2x))

  • Inputs and Outputs Speaker Outputs

    • Center (Bass/Treble) : Yes
    • Front (Bass/Treble) : Yes
    • Front High (Bass/Treble) : Yes
    • Center Speaker Lift Up : Yes
    • Surround Back (Bass/Treble) : Yes
    • Surround (Bass/Treble) : Yes

  • Inputs and Outputs Video Inputs

    • Component Video In : 2 (assignable)
    • HDMI In : 6 (1 front) (2 with HDCP 2.2 support)
    • Component Video Out : 1

  • Inputs and Outputs Video Outputs

    • Composite Video Out: Inc. Monitor Out : 2
    • HDMI Out : 2 (with HDCP 2.2 support)

• Video Features

  • Video Features A/V Sync Features

    • A/V Sync Sampling Frequency : 192 kHz
    • A/V Sync Time (msec) : 0-300 msec
    • A/V SYNC : Yes (Variable)

  • • HDMI™ video output capability : 4K, 1080p, 1080/24p Deep Color (up to 36 bit), TRILUMINOSTM Color (xvYCC)
    • Video Up Converter (Analog Component/HDMI) : Yes (Analog to HDMI)
    • Video Up Scaler (Analog; Component/HDMI) : Yes (4K)
    • Power Off Pass Through : Yes
    • 3D over HDMI : Yes
    • DSD : Yes (HDMI)
    • BRAVIA® SYNC™ (CEC Control) : Yes (One Touch Play, System Audio Control, System Power Off)
    • S-Select : Yes
    • Audio Return Channel : Yes

  • Weight and Measurements Weight and Measurements

    • Receiver Weight (pound) : 13.4 kg
    • Receiver Dimension (WxHxD inches) : 430 x 174 x 410 mm

Highlights

• 7.2 Ch. A/V Receiver (110W @ 8 ohms, 1 kHz, THD 0.9%)

• Optimized chassis and internal circuitry for incredible audio performance

• Flexible HD connectivity with 8 assignable inputs (6 HDMI, 2 component)1

• 8-port Giga Ethernet Hub with PoE (x2) support2 for flexible connectivity

• Convenient front USB for system updating and setup3

• Web browser configurable set-up (programming)
