ES 7.2-channel 4K A/V Receiver

• 7.2-channel with 100 watts per channel
• Easy automation
• 4K resolution pass-through and upscaling
• 10 HD inputs
• Internet streaming

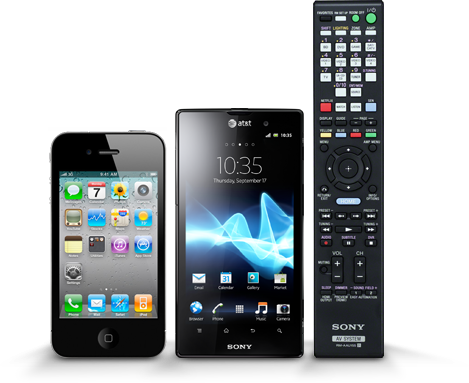

• Control with iOS and Android™ devices
• 5-year limited warranty

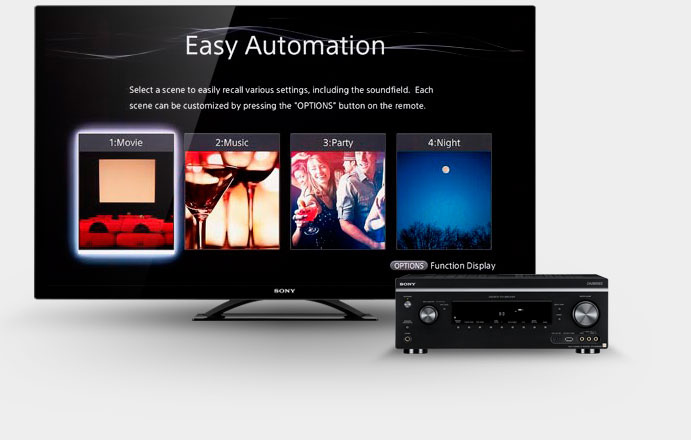

Easy automation.

Control all your home theater components, including your TV, cable box, receiver and Blu-ray Disc™ player, with the press of a button on the included remote or with the ES Remote app on your compatible iOS or Android™ device2. You can even control your lights with the purchase of compatible switches or dimmers.

Programmable ambiance.

With the STR-DA2800ES, you can create, save, and launch pre-programmed scenes and moods. For instance, choose "Watch A Movie" and the lights dim, the volume and EQ adjust to where you want, the inputs switch, and your home theater comes alive10. It even lets you create scenes for all of your entertainment options, whether it's movie watching, music for private listening or a house party, or for any of your gaming choices.

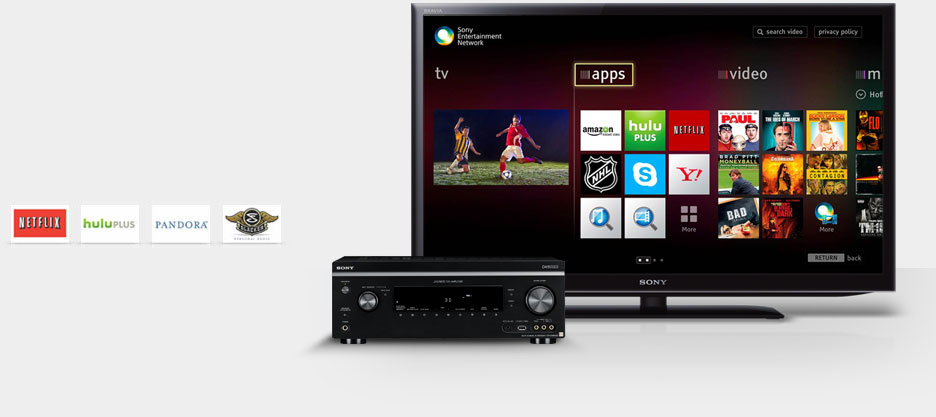

Now streaming.

The Sony STR-DA2800ES receiver has the capability to stream both video and audio from the internet, including Netflix®, YouTube®, Hulu Plus™, Pandora®, Slacker®, and more3.

• NETFLIX
• HULU PLUS
• PANDORA
• SLACKER

Easy set-up wizard.

The STR-DA2800ES easy set-up wizard will take you through everything you need to create and control your home theater experience. Includes four customizable scenes which can be programmed to perform an array of tasks. With the press of a button, you can turn on your TV, adjust the volume level, start your Blu-ray player and dim the lamps for the perfect home movie experience.

• • Amplifier/Receiver Amplifier Features

    • 4 Ohm/8 Ohm Switching : 8 Ohm
    • Analog Down Mix : 17 points (40-200Hz)
    • Number of Amp channels : 7ch
    • Bi-AMP : Yes
    • Speaker Impedance : 8- 16ohm
    • Sound Optimizer : Yes
    • DSP : Falcon2.0
    • Digital Legato Linear : Yes
    • Speaker Selector : [A/B, A+B]

  • Amplifier/Receiver Amplifier Power

    • 8Ohms 1kHz : 110W + 110W

  • Amplifier/Receiver CIS & Control Features

    • 2nd A : Speaker&Line (Variable&Variable)
    • IP Control : Yes

  • Amplifier/Receiver DCAC Features

    • Mic : Mono
    • Band : 6
    • DCAC : Advanced D.C.A.C.

  • Amplifier/Receiver Network Features

    • Direct Ethernet Update : Yes
    • Network Renderer : Yes
    • Mobile Application : ES Remote Base (iPhone/Android)
    • Sony Entertainment Network : Yes(up to Video)
    • Network Client : Yes (Music/Photo/Video)

  Audio Features

  • Audio Features Decoding Format

    • Dolby Digital EX/ Dolby Digital : Yes (Dolby Digital EX and Dolby Digital)
    • 96kHz/24bit : Yes
    • Dolby Prologic/II /IIx /IIz : Yes (II, Iıx and Iız)
    • Dolby Dual Mono : Yes
    • Dolby TruHD/Dolby Digital + : Yes (Dolby TruHD and Dolby Digital +)
    • DTS HD MA/ DTS HD HR : Yes/Yes
    • DTS 96/24/ DTS Neo:6 : Yes/Yes
    • DTS / DTS-ES (Matrix6.1 / Discrete6.1) : Yes/Yes
    • LPCM (2CH/5.1CH/7.1CH) thru HDMI : Yes(Yes/Yes/Yes)

  • Audio Features Sound Field

    • True Concert Mapping: Concertgebouw/Musikverein : Yes (SB/FH)
    • PLII Movie : Yes
    • PLIIx Movie : Yes
    • PLII Music : Yes
    • Portable Audio Enhancer : Yes
    • PLIIx Music : Yes
    • PLIIz Height : Yes
    • Stadium : Yes (SB/FH)
    • Sports : Yes (SB/FH)
    • Sound Field Link : Yes
    • Live Concert : Yes (SB/FH)
    • Multi Stereo : Yes (SB/FH)
    • Neo:6 Music : Yes
    • Neo:6 Cinema : Yes
    • A.F.D. Auto : Yes
    • Berlin Philharmonic Hall : Yes (SB/FH)
    • HD-D.C.S. : Yes (SB/FH)
    • Analog Direct : Yes
    • Headphone 2ch : Yes
    • Headphone Direct : Yes
    • Jazz Club : Yes (SB/FH)
    • 2ch : Yes

  • Audio Features Tuner

    • Station Name : Yes
    • Auto Tuning : Yes
    • Preset Channel (FM/AM) : TTL60 (30/30)
    • Direct Tuning : Yes (RM)

  General

  • General Installation

    • 2nd V : Composite & Component & HDMI
    • Certification (AMX/Crestron/Control 4) : Yes
    • RS-232C for Control : Yes
    • IR Repeat (In/Out) : Yes(1/4)

  • General Other

    • Power Requirement : 120V 60Hz
    • Power Consumption (Power Stand By) : 0.5W
    • Power Consumption : 290W
    • Sleep Timer : Yes (up to 2 hours)
    • Auto Standby : Yes
    • Assignable HDMI Video In : Yes
    • Easy Automation : Yes
    • Digital Input Assign : Yes
    • Detachable AC : Yes
    • GUI Language : En/Fr/Dl/Sp
    • GUI : Yes (New Rich Grade)
    • Panel : Mold/HAT Entry
    • iPod Browsing with System (via USB) : Yes (Video/Music)
    • Assignable Component Video In : Yes

  Inputs and Outputs

  • Inputs and Outputs Audio Inputs

    • Analog Audio In : 2
    • Coaxial : 1
    • Multi-ch In : Yes (FM and AM)
    • Optical In : 2

  • Inputs and Outputs Audio Outputs

    • Pre Out (Front (L/R)) : 19 11/16 X 10 3/16 X19 3/16 in
    • Pre Out (Subwoofer) : 2
    • Pre Out (Surround (L/R)) : 33lb 1oz
    • Headphone Out : Yes

  • Inputs and Outputs Other Inputs and

    • USB : 2 (Front:iPhone/WM + Back:for Zigbee)
    • Ethernet (Switching HUB) : 4 (yes)

  • • Center : Yes
    • Front (Bass/Treble) : Yes/Yes
    • Front A (L/R) : Yes
    • Surround (L/R) : Yes

  • Inputs and Outputs Speaker Outputs

    • Center : Yes
    • Front (Bass/Treble) : Yes/Yes
    • Front A (L/R) : Yes
    • Surround (L/R) : Yes

  • Inputs and Outputs Video Inputs

    • Component Video In : 2
    • AV In: Including Front AV : 3
    • HDMI In : 8

  • Inputs and Outputs Video Outputs

    • AV Out: Inc. Monitor Out : 2
    • Composite Video Out: Inc. Monitor Out : 1
    • HDMI Out : Output x2 + Zone Ont x1
  • • 2nd V : Composite & Component & HDMI
    • Certification (AMX/Crestron/Control 4) : Yes
    • RS-232C for Control : Yes
    • IR Repeat (In/Out) : Yes(1/4)

  Other

  • • Power Requirement : 120V 60Hz
    • Power Consumption (Power Stand By) : 0.5W
    • Power Consumption : 290W
    • Sleep Timer : Yes (up to 2 hours)
    • Auto Standby : Yes
    • Assignable HDMI Video In : Yes
    • Easy Automation : Yes
    • Assignable Component Video In : Yes
    • Digital Input Assign : Yes
    • Detachable AC : Yes
    • GUI Language : En/Fr/Dl/Sp
    • GUI : Yes (New Rich Grade)
    • Panel : Mold/HAT Entry
    • iPod Browsing with System (via USB) : Yes (Video/Music)

  Video Features

  • Video Features A/V Sync Features

    • A/V Sync Sampling Frequency : 192kHz
    • A/V Sync Time (msec) : 0-300
    • Power Off Pass Through : Yes
    • 3D over HDMI : Yes
    • DSD : Yes
    • BRAVIA® SYNC™ (CEC Control) : Yes (One-Touch Play, System Audio Control, System Power Off, Theater Mode(No button on RM))
    • S-Select : Yes
    • Audio Return Channel : Yes
    • Audio Widget : Yes
    • HDMI Version : 1.4a
    • HDMI™ video output capability : 4k, 1080/24p, Deep Color, x.v.Color (xvYCC)
    • Video Up Converter (Analog Component/HDMI) : Yes (Analog component and HDMI)
    • Video Down Converter (Analog to Analog) : Yes
    • Video Up Scaler (Analog; Component/HDMI) : Yes(1080i and 4k)
    • HDMI Version : 1.4a
    • HDMI(tm) video output capability : 4k, 1080/24p, Deep Color, x.v.Color (xvYCC)
    • Video Up Converter (Analog Component/HDMI) : Yes (Analog component and HDMI)
    • Video Down Converter (Analog to Analog) : Yes
    • Video Up Scaler (Analog; Component/HDMI) : Yes(1080i and 4k)
    • Power Off Pass Through : Yes
    • 3D over HDMI : Yes
    • DSD : Yes
    • BRAVIA® SYNC™ (CEC Control) : Yes (One-Touch Play, System Audio Control, System Power Off, Theater Mode(No button on RM))
    • S-Select : Yes
    • Audio Return Channel : Yes
    • Audio Widget : Yes
  • Receiver Weight (pound) : 27lb 6oz
  • Receiver Dimension (WxHxD inches) : 17 X6 1/2 X15 1/8 in

  • Weight and Measurements Weight and Measurements

    • Receiver Weight (pound) : 27lb 6oz
    • Receiver Dimension (WxHxD inches) : 17 X6 1/2 X15 1/8 in
